H-shaped steel three-dimensional five-axis cutting

H-shaped-steel-three-dimensional-five-axis-cutting

Description
Inquiry

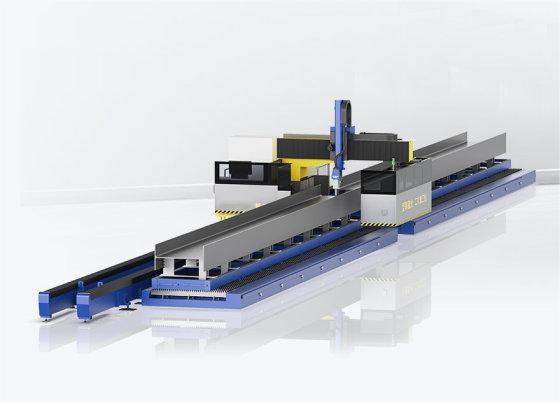

H-shaped steel cutting, hole cutting, engraving, marking and scribing can be done in one machine;

Equipped with fine hole cutting technology;

Supports various overlapping bevel cutting processes;

Supports TEKLA steel structure 3D modeling data file cutting.

Features

◆ Advanced three-dimensional six-axis five-linkage control technology

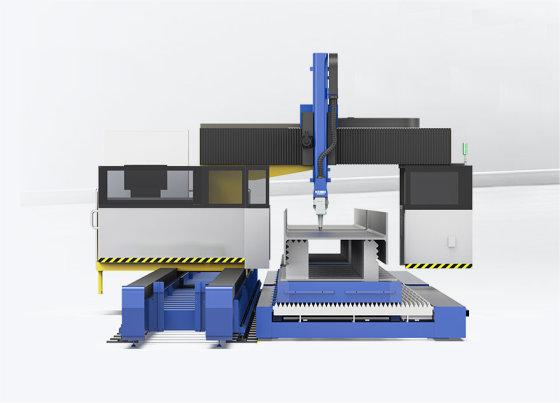

◆Double station design: While station A is cutting, station B is hoisting, loading and unloading.

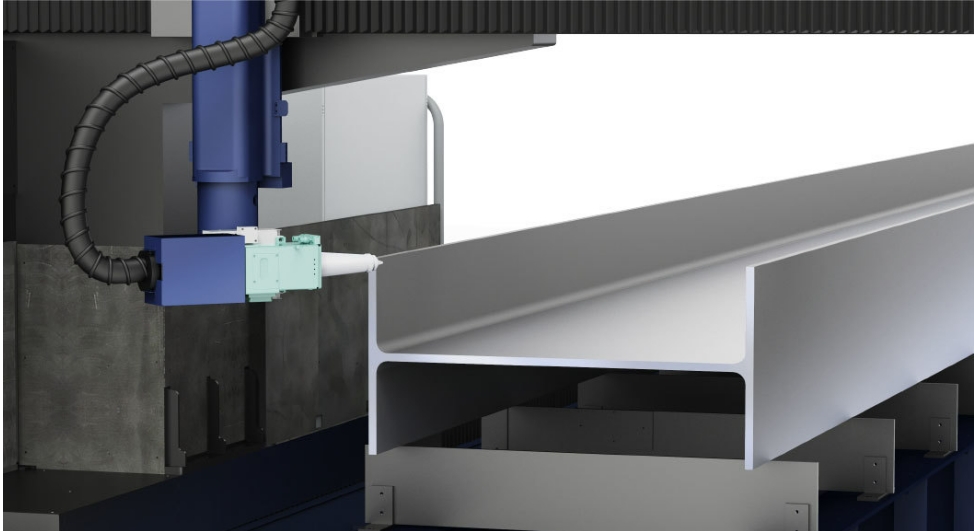

◆ The cutting head of this product is a customized product of Zhouxiang Laser, using special customized components. It has automatic focusing, APP real-time monitoring, and coaxial ejection of auxiliary gas cutting to ensure the best cutting quality.

◆ The 12000W laser has higher photoelectric conversion efficiency, which can achieve better and more stable beam quality and stronger resistance to high reflection.

Serial number	Item/Model	DP-FCX50120
1	Section steel cutting range	Height:15 0mm~800mm
		Width:250mm~1200mm
		Length ≦ 26000mm
2	X-axis travel	2000mm
3	Y-axis travel	26000mm
4	Z-axis travel	900mm
5	X/Y axis positioning accuracy	±0.25mm
6	X/Y axis repeat positioning accuracy	±0.05mm
7	X/Y /Z maximum speed	30m/min
8	A-axis swing angle	±90°
9	B axis swing angle	±90°
10	maximum acceleration	0.2G
11	Power Specifications	Three phase 380V ,50/60HZ
12	Laser power	12000W/20000W
