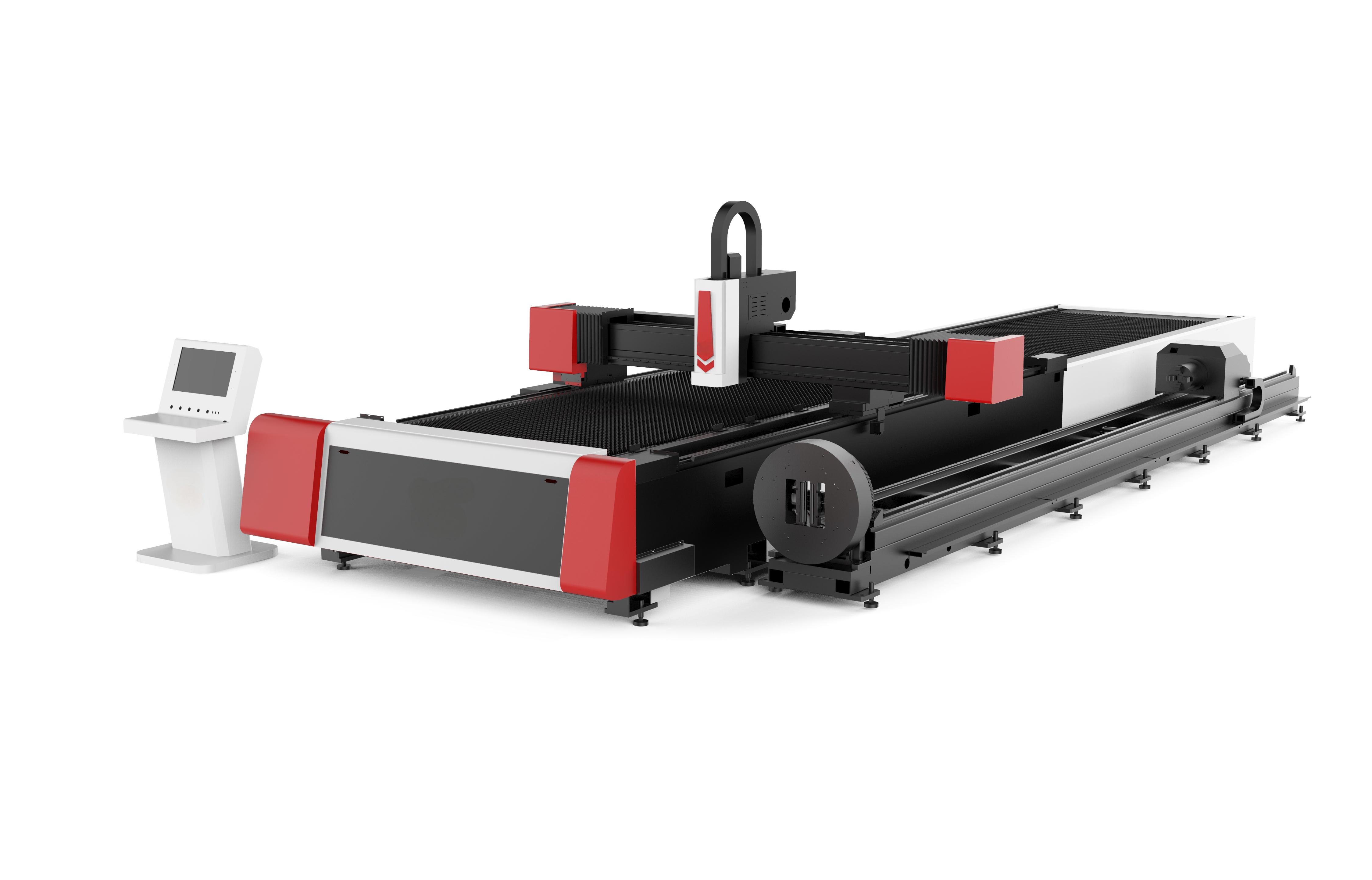

Sheet and pipe integrated laser cutting machine

Sheet and pipe integrated laser cutting machine

1. Functional integration: It integrates the functions of pipe and plate cutting. Without changing the equipment, you can flexibly switch the cutting tasks between pipe and plate to meet the diversified processing needs.

2. High cutting accuracy: Using advanced laser technology and precision transmission components, the cutting accuracy can reach ±0.1mm, the cutting edge is smooth, the heat-affected zone is small, and the processing quality is guaranteed.

3. Fast cutting speed: The cutting efficiency is much higher than that of traditional cutting equipment, which can greatly shorten the processing time, increase the output per unit time, and speed up the production cycle.

4. Strong material adaptability: It can cut a variety of metal materials such as stainless steel, carbon steel, aluminum alloy, and some non-metallic materials, and has a wide range of applications.

5. Intelligent operation: Equipped with intelligent CNC system and intuitive operation interface, it is easy to operate and easy to use. It also supports the import of multiple file formats for easy programming and design.

6. Layout optimization: Built-in intelligent layout software can automatically optimize the layout plan, improve material utilization, and reduce production costs.

7. Automatic loading and unloading: It has an automatic loading and unloading system to achieve rapid loading and unloading of materials, reduce manual operations, and improve the degree of production automation.

8. Easy maintenance: modular design, stable performance of key components, daily maintenance mainly involves simple cleaning, lubrication, etc., with low maintenance cost.

9. Environmental protection and energy saving: low noise during cutting, no large amount of harmful gas emissions, and high laser energy utilization, in line with the concept of green production.

Main technical parameters (specific model configuration parameters vary)
Effective cutting size(m)3*1.5,4*2,4*1.5,6*1.5,6*2,6*2.5,8*2.5,12*2.5,customized
Pipe size(mm)120,230,280,360
Laser power1500w-30000w
Minimum line width0.15mm
positioning accuracy±0.03mm/m
Repeat positioning accuracy±0.03mm/m
Power configuration380v three phase 50hz/60hz
